Product Description:
 |
|

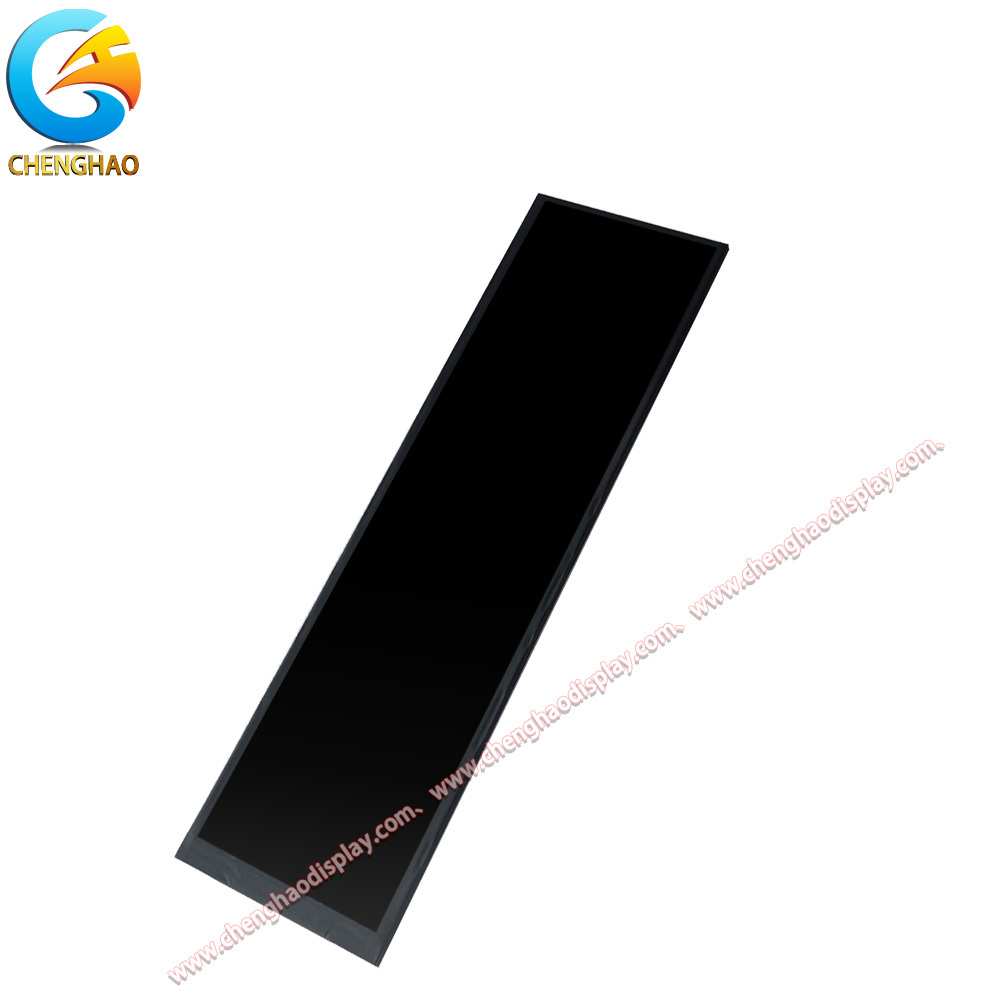

The CH880FH01A, an 8 inch long strip TFT LCD module exclusively developed by Chenghao Optoelectronic, stands out as a specialized display solution for scenarios requiring elongated visual interfaces. Positioned as a factory wholesale product with a 100-piece MOQ, it supports sample provision and customization, catering to both small-batch testing and large-scale production needs of industrial and consumer electronics clients.

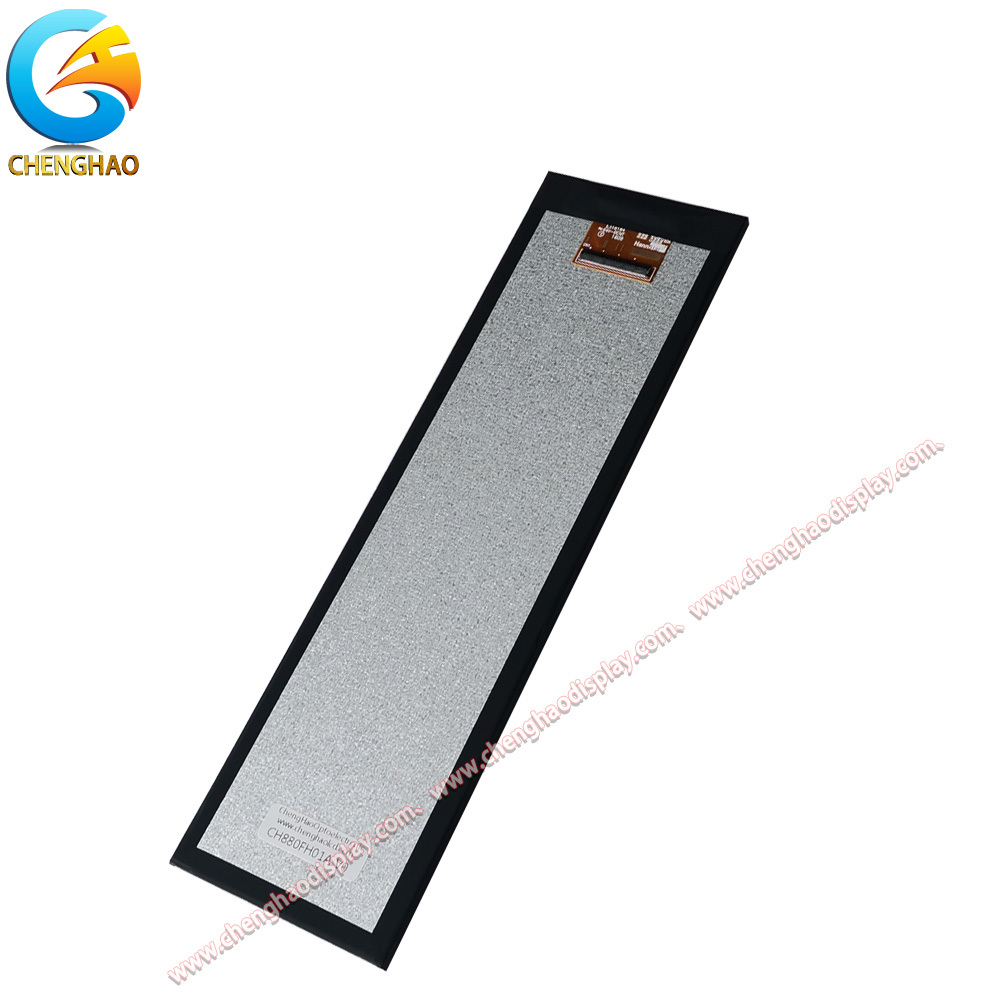

In terms of appearance, the module features a distinct long strip design with overall dimensions of 231.3x64.3 mm, paired with a visible area of 219.48x55.32 mm and an active area of 218.88x54.72 mm—optimizing space utilization for devices like smart home control strips, industrial equipment dashboards, and automotive auxiliary displays. Structurally, it is a color active matrix TFT LCD module, integrating a TFT LCD panel, driver IC, backlight, and FPC, with amorphous silicon TFT serving as the switching device to ensure stable operation. |
|

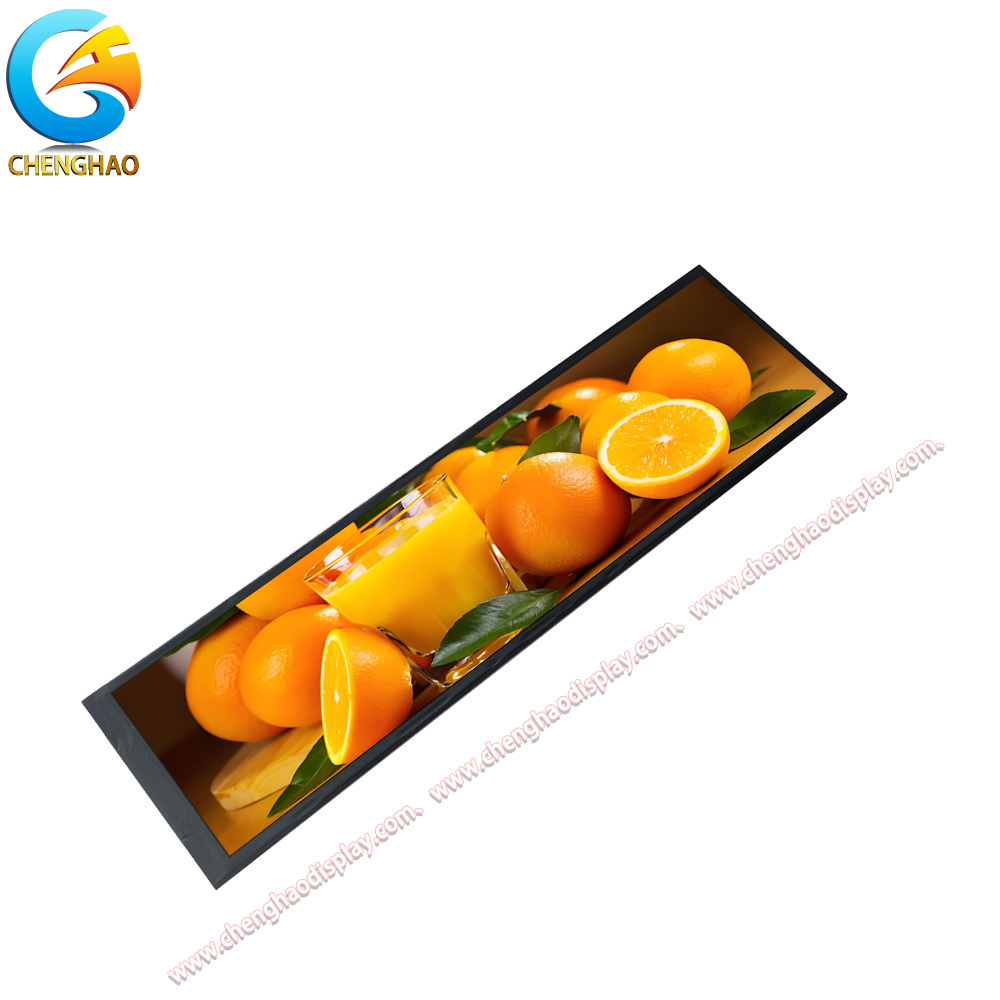

Functionally, the CH880FH01A excels in display performance. Adopting IPS/transmissive/normally black display mode, it delivers consistent clarity from 80/80/80/80 viewing directions, allowing users to obtain vivid visuals from any angle. With a high resolution of 480x1920 dots and 16M color support, it reproduces rich, true-to-life hues—ideal for displaying detailed data, dynamic graphics, or interactive interfaces. Boasting 500 cd/m² brightness, it maintains clear visibility even in bright environments, while the MIPI interface ensures fast and stable signal transmission for smooth content rendering.
The module also offers reliable environmental adaptability, operating stably at -20 ~ +70 ℃ and withstanding storage temperatures of -30 ~ +80 ℃, making it suitable for indoor and outdoor applications prone to temperature fluctuations. For clients with unique needs, customization services are available, and sample requests are welcomed to facilitate pre-production evaluation. As a cost-effective, specialized long strip display, the CH880FH01A meets the diverse demands of modern device development.
|
|
|
Features:
- Specialized 8-Inch Long Strip Design: With overall dimensions of 231.3x64.3 mm, visible area of 219.48x55.32 mm, and active area of 218.88x54.72 mm, this module is tailored for devices needing elongated display interfaces, such as smart home control strips and industrial dashboards, maximizing space efficiency.
- Superior IPS Display Performance: Equipped with IPS/transmissive/normally black mode, 480x1920 high resolution, 16M colors, and 80/80/80/80 viewing angles, it delivers consistent, vivid visuals from all directions, suitable for showing detailed data and dynamic graphics.
- High Brightness & Efficient MIPI Interface: Boasting 500 cd/m² brightness, it ensures clear visibility even in bright environments; the MIPI interface enables fast, stable signal transmission, guaranteeing smooth rendering of interactive or real-time content.
- Flexible Wholesale & Customization Services: Positioned as factory wholesale with a 100-piece MOQ, it supports sample requests for pre-production testing and offers customization options, meeting both small-batch trial and large-scale production needs of clients.
- Wide Temperature Adaptability: Operates stably at -20 ~ +70 ℃ and withstands storage temperatures of -30 ~ +80 ℃, making it reliable for indoor and outdoor applications prone to temperature fluctuations, such as automotive auxiliary displays.
Technical Parameters:
| Interface |
MIPI |
| Contrast |
800:1 |
| Operating Temperature |
-20 ~ +70℃ |
| Active Area |
218.88x54.72 mm |
| Viewing Area |
219.48x55.32 mm |
| Viewing Direction |
80/80/80/80 |
| Display Mode |
IPS/Transmissive/Normally Black |
| Resolution |
480x1920 Dots |
| Color |
16M |
| Storage Temperature |
-30 ~ +80℃ |
Applications:
1. Industrial ControlIn industrial control scenarios, the CH880FH01A serves as a core display component for long-strip industrial dashboards. Its 8-inch long strip design (231.3x64.3 mm) perfectly fits the narrow installation spaces of control cabinets in manufacturing workshops. With IPS technology offering 80/80/80/80 viewing angles, operators at different positions can clearly read real-time data like production line speed, equipment temperature, and pressure values displayed on the module. The 500 cd/m² brightness ensures visibility even under the strong overhead lighting of workshops, while the -20 ~ +70 ℃ operating temperature range adapts to the temperature fluctuations in industrial environments, making it ideal for monitoring assembly line equipment and mechanical control systems.
2. Smart HomeWithin smart home systems, the module is integrated into wall-mounted smart control strips. Its elongated active area (218.88x54.72 mm) allows it to display multiple home device statuses simultaneously, such as air conditioner temperature, lighting brightness, and security door access records. The 16M color support and 480x1920 resolution present intuitive icons and interactive interfaces, enabling users to touch-control (when paired with a touch panel) or view device information at a glance. Its compact size fits seamlessly into narrow wall spaces beside doorframes or above switches, and the stable performance under normal home temperature conditions ensures long-term reliable use for smart home central control.
Customization:
Chenghao Optoelectronic offers comprehensive customization services for the CH880FH01A 8-inch long strip TFT LCD module, tailored to meet the unique needs of clients across different application fields. These services cover multiple core aspects of the module, ensuring it aligns perfectly with specific device integration and functional requirements.
In terms of display performance customization, clients can adjust the brightness beyond the standard 500 cd/m²—options range from 200 cd/m² for low-power indoor devices (like smart home control strips) to 800 cd/m² for outdoor IoT terminals that require high visibility under direct sunlight. Additionally, color gamut tuning is available: for medical or industrial applications demanding precise color reproduction, the module can be calibrated to narrow down the color range for accuracy; for consumer-facing devices like vehicle-mounted auxiliary displays, a wider color gamut can be adopted to enhance visual appeal.
Structural customization focuses on adapting the module to diverse installation spaces. While the standard module size is 231.3x64.3 mm, the FPC length and connector position can be modified—for example, shortening the FPC by 10-20 mm for compact smart vending machine installations or repositioning the connector to the edge of the module to fit the wiring layout of industrial control cabinets. The lens material is also customizable: clients can choose anti-glare (AG) lenses for vehicle-mounted applications to reduce sunlight reflection, or anti-fingerprint (AF) lenses for frequently touched smart home control strips to maintain clarity.
Interface and functional customization caters to different system compatibility needs. Though the standard interface is MIPI, the module can be adapted to support SPI or parallel interfaces for clients using older-generation microcontrollers in instrumentation. For specialized scenarios like industrial monitoring, an optional built-in temperature sensor can be integrated into the module, enabling real-time monitoring of the display’s operating temperature and triggering alerts if it exceeds the safe range—adding an extra layer of reliability for critical applications.
Finally, small-batch customization flexibility is a key advantage. Even with a standard MOQ of 100 pieces, Chenghao Optoelectronic accepts minimum customization orders of 50 pieces for clients in the R&D phase (e.g., startups developing new IoT devices), allowing them to test and iterate on customized modules without high initial investment. All customization processes are supported by pre-production samples, ensuring clients verify the design before mass production.
FAQ:
Q: What is the brand name of this TFT LCD Display?
A: The brand name of this TFT LCD Display is Chenghao Optoelectronic.
Q: What is the model number of this TFT LCD Display?
A: The model number of this TFT LCD Display is CH800FH01A.
Q: Where is this TFT LCD Display manufactured?
A: This TFT LCD Display is manufactured in China, Shenzhen.
Q: What certifications does this TFT LCD Display have?
A: This TFT LCD Display is certified with CE, ISO9001, RoHS, and SGS.
Q: What is the minimum order quantity for this TFT LCD Display?
A: The minimum order quantity for this TFT LCD Display is 100 pieces.
